Specifications

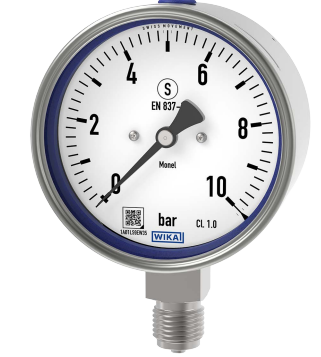

Bourdon Tube Pressure Gauges, Monel
Series Model: 263.50
Specifications according to data sheet: PM
02.02 Measuring system: Monel
Case filling: with
Nominal size: 100 mm
Scale range: 0...25 bar
Process connection: 1/2 NPT Connector
location: lower mount Window: laminated
safety glass Pointer: standard pointer
Accuracy class: class 1.0
Overpressure safe: standard
Case material: Stainless steel 1.4301
Case surface: bare
Material pressure element: Measuring
System MONEL
Case filling fluid: glycerine
Ingress protection: IP 65
Movement: stainless steel
Packaging: single packing
Pressure Gauge Standard: International (standard Europe)
