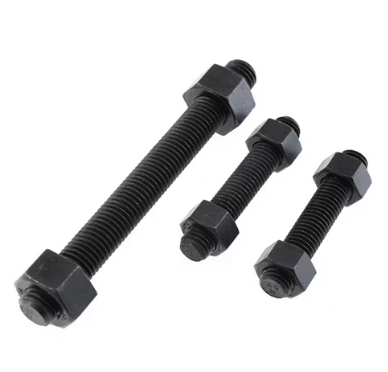

Hex Bolt A193 B7 Full Thread with Nut A194 2H – M8 x 60mm
Reliable, durable, and engineered to meet demanding industrial standards.
Secure your critical connections with high-strength Hex Head Bolt ASTM A193 Grade B7, full thread, size M8 x 60mm, paired with 2 pcs Hex Nut ASTM A194 Grade 2H. Manufactured in accordance with ASME B18.2.1 and B18.2.2, this fastener set is designed for high-temperature and high-pressure applications in oil & gas, petrochemical, power generation, and heavy industrial sectors.
Bolt Material: Alloy Steel (A193 Gr. B7), Heat Treated
Nut Material: Carbon Steel (A194 Gr. 2H), Quenched & Tempered
Size: M8 x 60mm (Full Thread)
Standards: ASME B18.2.1 (Bolt), ASME B18.2.2 (Nut)
Applications: Flange joints, valve assemblies, pressure vessels
Item Attributes
| Tensile Strength | Bolt: ≥860 MPa; Nut proof load ~1,200 MPa |
| Standard Compliance | ASME B18.2.1 (bolt), B18.2.2 (nut); ASME B1.1 thread spec |
| Temperature Rating | Suitable up to ~450 °C |
| Yield Strength | Bolt: ≥720 MPa; Nut class-specific |
| Nut Size | ASTM A194 Grade 2H heavy hex nut, M8 |
| Bolt Size | ASTM A193 Grade B7, full thread, M8 × 60 mm |
