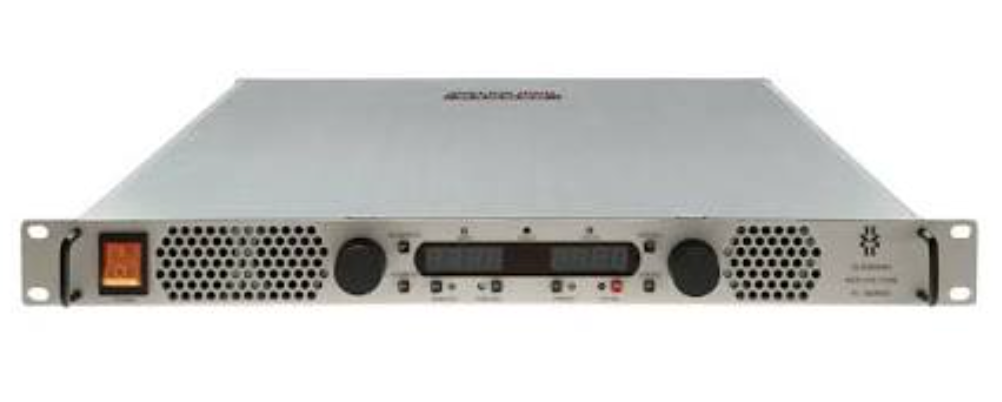

Product Overview
- Manufacturer: XP Glassman / XP Power
- Product Line: FL Series Regulated High Voltage DC Power Supplies
- Form Factor: 1U 19-inch standard rack mount enclosure, forced-air cooled
Output Specifications
- Rated Power: 1.5 kW (1500 Watts) maximum
- Voltage Range: Continuously adjustable from 0 to 1000 VDC (or up to 1500 VDC depending on the exact configuration variant)
- Current Range: Continuously adjustable from 0 to 1.5 A (constrained by the maximum 1500W power rating)
- Ripple & Noise: Less than 0.03% RMS of rated voltage at full load
-
Static Regulation:
- Line Regulation: Better than 0.005% for specified input line variations
- Load Regulation: Better than 0.01% for a full load change
-
Accuracy:
- Voltage: 0.5% of setting + 0.2% of rated voltage
- Current: 0.5% of setting + 0.2% of rated current
- Output Insulation: Supports floating output operation for enhanced isolation safety
Input Specifications
- Input Voltage: 90 to 264 VAC, single-phase, 48–63 Hz
-
Input Current:
- Less than 20 A RMS at 100 VAC input
- Less than 11 A RMS at 200 VAC input
- Inrush Current: 30 A peak maximum
- Efficiency: Typically 84% to 85% at full load
- Power Factor: 0.99 minimum at full load
Controls, Programming, and Monitoring
-
Local Controls: Dual front-panel optical rotary encoders with dynamic step sizes
- Fine Mode: 1 V / 1 mA increments
- Coarse Mode: 10 V / 10 mA increments
-
Remote Control: Rear-panel selectable switch for external analog control
- Signal Range: 0 to +5V or 0 to +10V scaling
- Communication Interfaces: Built-in standard RS232 and USB serial ports (Optional Ethernet/LAN module available)
Protection and Environmental
- Built-in Safety Features: Continuous short circuit protection, arc protection, overvoltage protection, overcurrent limiting, and overtemperature thermal shutdown
- Operating Temperature: -20°C to +40°C full load ambient
- Storage Temperature: -40°C to +85°C
- Compliance Standards: CE marked for Low Voltage (LVD) and EMC Directives, RoHS compliant
