TECHNICAL SPECIFICATION SHEET
- PRODUCT IDENTIFICATION

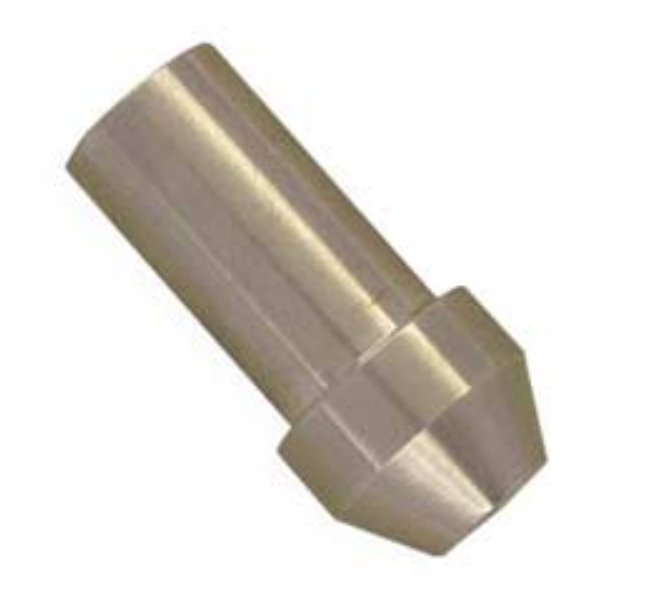

- Brand: Parker Autoclave Engineers
- Part Number: CPX40
- Product Type: Connection Plug
- Series: SF Series (Slimline Medium Pressure)
- Connection Type: Coned-and-Threaded (SF250CX / SF250CX20)
- OPERATING PERFORMANCE
- Maximum Working Pressure: 20,000 PSI (1,379 bar)
- Minimum Temperature: -425°F (-252°C)
- Maximum Temperature: 1200°F (649°C)
- Sealing Mechanism: Metal-to-metal design
- DIMENSIONS & SIZING
- Nominal Tube Size: 1/4 inch
- Outside Diameter (O.D.): 0.250 inches (6.35 mm)
- Thread Size: 7/16-20 UNF-2A
- MATERIALS & CONSTRUCTION
- Body Material: 316 Stainless Steel
- Material Condition: Cold worked
- Corrosion Resistance: High NACE MR0175 compliant options available
- COMPLIANCE & APPLICATIONS
- Application: High-pressure fluid systems, chemical processing, oil & gas laboratories, gas distribution manifolds.
- Safety Feature: Integrated weep holes for leak detection prior to complete unthreading.
