TECHNICAL SPECIFICATION SHEET
Product Identification
- Brand: Parker Autoclave Engineers
- Part Number: 20M96K6

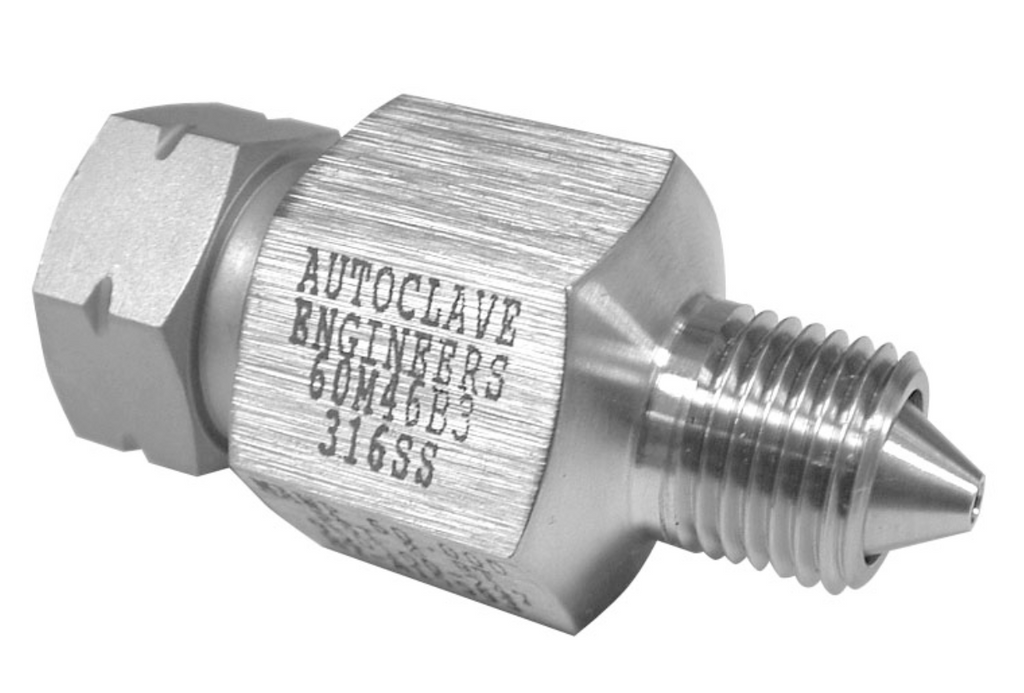

- Product Type: SlimLine Medium Pressure Adapter (One-Piece Design)
Design & Material Specifications
- Material: Cold-worked 316 Stainless Steel
- Configuration: Male-to-Female Connection
- Construction: Rigid one-piece body structure
Pressure & Temperature Ratings
- Maximum Allowable Working Pressure (MAWP): 20,000 psi (1,379 bar)
- Operating Temperature Range: Subject to system fluid and application standards
Connection Dimensions
- Side 1 (Male Connection): 9/16" Medium Pressure (SF562CX)
- Side 2 (Female Connection): 3/8" Medium Pressure (SF375CX)
Physical Dimensions
- Hex Size: 0.94 inches (23.8 mm)
- Overall Length: 1.34 inches (34.1 mm)
- Orifice Diameter: 0.25 inches (6.4 mm)
