TECHNICAL SPECIFICATION SHEET
- GENERAL DESCRIPTION
The item is a dedicated mechanical mounting kit (mounting set) designed for the precise integration and alignment of a valve positioner onto a pneumatic actuator. It ensures rigid coupling and back-lash free position feedback transmission from the actuator shaft to the controller. - COMPONENT IDENTIFICATION
- Part Number / Ordering Code: H099616
- Product Description: MOUNTING SET | M-Z-ROTORK CP/S-055 - ND9000
- COMPATIBILITY INTERFACE
- Actuator Manufacturer: Rotork (Rotork Fluid Systems)
- Actuator Series: CP and CPS series (Heavy-duty Scotch-Yoke pneumatic actuators)
- Actuator Body Size: 055
- Positioner / Controller Manufacturer: Valmet (formerly Neles / Metso Flow Control)

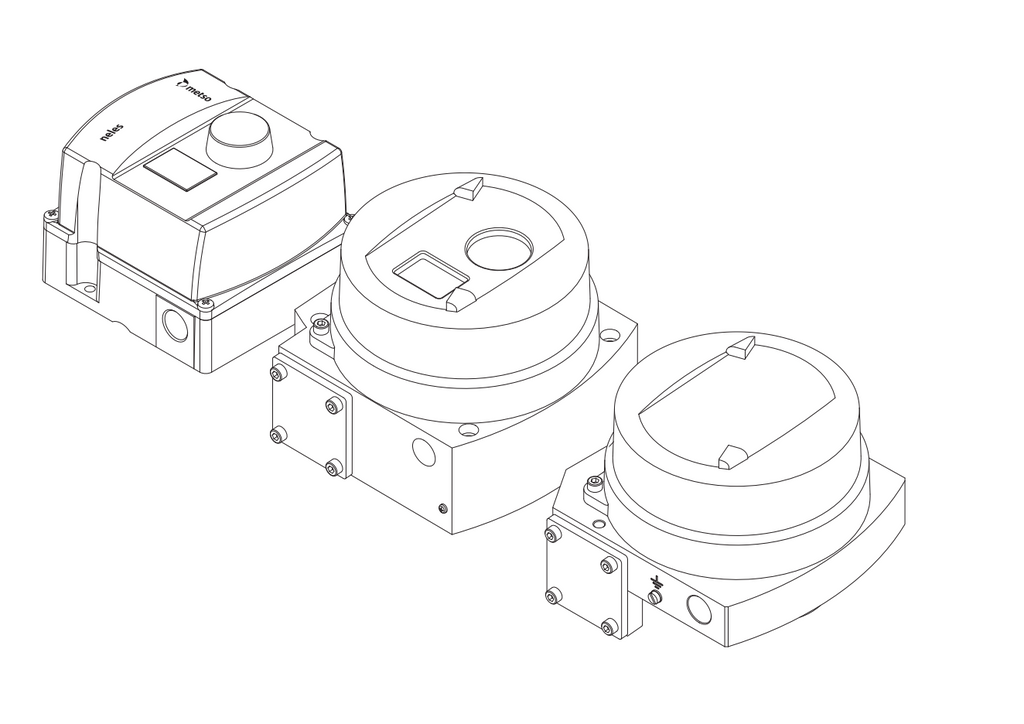

- Positioner Series: ND9000 Series Intelligent Valve Controllers
- TECHNICAL & DESIGN FEATURES
- Interface Standard: Compliant with VDI/VDE 3845 standard (NAMUR interface for valve automation accessories).
- Material Construction: High-grade stainless steel or corrosion-resistant coated carbon steel engineered for harsh industrial and offshore processing environments.
- Hardware Included: Heavy-duty mounting bracket, mechanical shaft coupler/spindle linkage, and all necessary structural bolts, washers, and locking elements.
- Alignment Precision: Engineered for zero-axial misalignment to guarantee accurate digital valve diagnostic signals and linear/rotary travel feedback.
