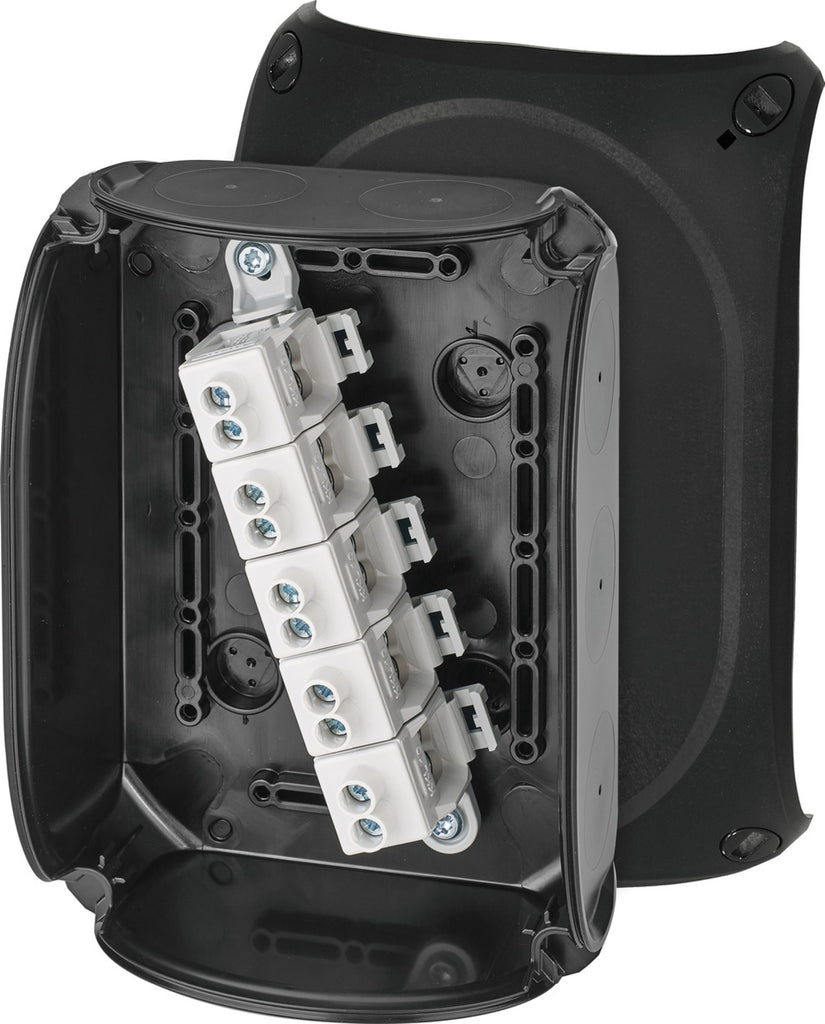

HENSEL KX1010C Cable Junction Box (ATEX Zone 2/22)
The HENSEL KX1010C cable junction box is a robust, weatherproof enclosure designed for safe electrical connections in hazardous environments. Part of the KX series, it is suitable for ATEX Zone 2 and Zone 22 applications, making it ideal for industries such as oil & gas, chemical processing, and industrial automation.
Constructed from high-quality polycarbonate, the enclosure provides excellent protection against environmental factors while ensuring reliable performance in demanding conditions.
Key Features
-
ATEX certified for Zone 2 and Zone 22 hazardous areas
- High protection rating IP66 (dustproof & water-resistant)
- Durable polycarbonate (PC) housing
- Weatherproof and UV-resistant design
- Includes terminal block (5-pole configuration)
- Flexible cable entry options (M20–M32)
- External brackets for wall mounting
Technical Specifications
- Model: KX1010C
- Brand: HENSEL
- Type: Cable junction box / terminal enclosure
- Protection Rating: IP66
- Explosion Protection:
- Zone 2 (gas)
-
Zone 22 (dust)
- Dimensions (H × W × D): 130 × 180 × 77 mm
- Material: Polycarbonate (PC)
- Rated Voltage: Up to 690V AC/DC
- Rated Current: Up to 32A (depending on conductor size)
- Cable Size: 2.5 – 10 mm²
- Terminals: 5-pole, multi-conductor capacity
- Mounting: Wall / surface mounting
