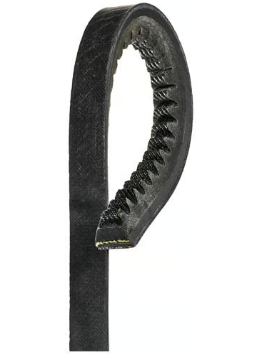

Gates 3VX950 Narrow Super HC® V-Belt
The Gates 3VX950 Narrow Super HC® V-Belt is engineered for superior performance in high-speed, high-horsepower drive applications. Designed with precision-molded notches, it delivers maximum flexibility, reduced heat buildup, and longer service life compared to conventional V-belts.
Built to meet RMA/ARPM standards for static conductivity and operating temperatures from −60 °F to +250 °F, the Gates 3VX950 is the reliable choice for demanding industrial environments where uptime and efficiency matter most.
With a 95-inch outside length and 3VX narrow profile, this belt provides compact, efficient power transmission in a wide range of industrial machinery including compressors, HVAC systems, pumps, and heavy-duty equipment. Its oil- and heat-resistant elastomer compound combined with strong polyester tensile cords ensures excellent durability, minimal stretch, and consistent performance.
Item Attributes
| Material | Polyester, Ethylene elastomeric (oil & heat resistant) |
| Color | Black |
| Length | 95.0 in / approx. 2413-2433 mm |
| Thickness | ~0.325-0.33 in ≈ 8-8.5 mm |
| Operating Temperature | −60 °F to +250 °F (≈ −51 °C to +121 °C) |
| Certifications | Meets gates “SUPER HC” standards; RMA / ARPM oil & heat resistant; static conductivity requirements. |
| Top Width | 3/8 in ≈ 9.5-10 mm |
