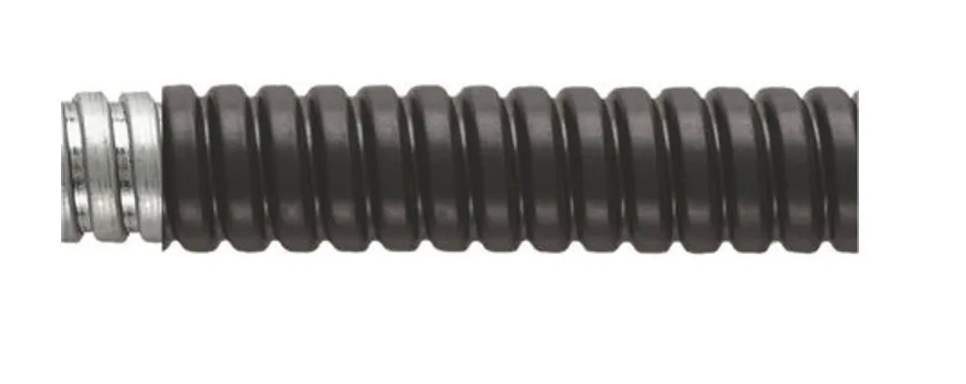

Technical Specification: Flexicon FSU50B-25M Flexible Conduit
- Manufacturer: Flexicon (An Atkore Brand)
- Part Number: FSU50B-25M
- Product Type: Liquid-Tight Flexible Galvanized Steel Conduit with PVC Coating
- Nominal Diameter: 50 mm
- Internal Diameter: 48.4 mm
- External Diameter: 55.0 mm
- Minimum Inside Bend Radius: 90 mm
- Coating Color: Black (UV resistant)
- Pack Length: 25 meters (Coil)
Material & Construction
- Core: Continuously wound, helically formed galvanized steel inner core providing high mechanical strength.
- Jacket: Extruded, smooth outer cover of high-grade Polyvinyl Chloride (PVC).
- Flexibility: High flexibility with excellent fatigue life under continuous movement.
Environmental & Performance Ratings
- IP Rating: IP54 with standard fittings; IP65 when used with compression fittings (Type FSU-C).
- Operating Temperature Range: Static applications: -15°C to +70°C | Moving applications: -5°C to +70°C.
- Chemical Resistance: High resistance to oils, greases, and standard industrial solvents.
- UV Resistance: Highly resistant to ultraviolet degradation, suitable for outdoor exposure.
Compliance & Standards
- International Standards: BS EN IEC 61386 (Conduit systems for cable management).
- Environmental Directives: RoHS Compliant, REACh Compliant.
- Certifications: CE Approved.
