1. Product Identification and Manufacturer
- Product Name: CRANEMAX M35K
- Manufacturer: Brunton Shaw UK (Usha Martin Group)
- Classification: High-performance, compacted, non-rotating / rotation-resistant steel wire rope
- Primary Applications: Crane hoist ropes, winches, offshore drilling, marine vessels, and heavy lifting systems requiring high stability
2. Design and Structural Features
- Rope Category: Shock Resistant / Rotation & Spin Resistant

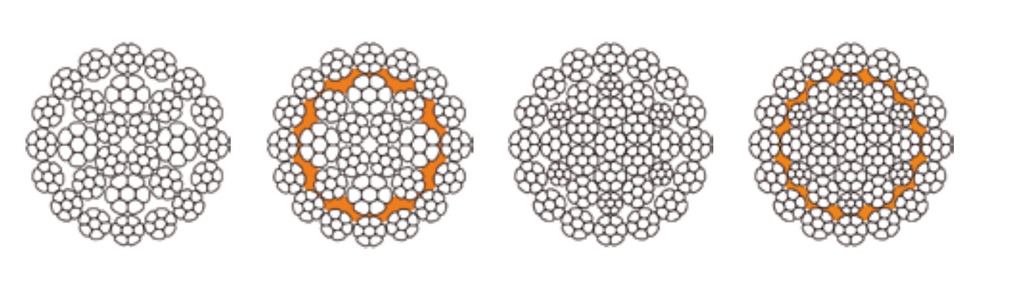

- Core Construction: Multi-layer non-rotating strand configuration (typically 35x7 / 35WxK7 class)
- Strand Technology: Compacted strands (indicated by the "K" suffix) providing higher steel density and enhanced surface contact
- Lay Profile: Typical Langs Lay (Left Hand or Right Hand variants available)
- Optional Treatment: Plastic impregnation available to increase resistance against severe fleet angles and internal corrosion
3. Mechanical Properties and Performance Factors
- Fill Factor (f): 0.72
- Minimum Breaking Force Factor (k): 0.93
- Mass Factor in Air: 0.0048
- Modulus of Elasticity: 110 kN/mm²
- Torque Factor: 0.012
- Reference Lay Factor: 6.5
- Rotation Property: 1 degree per lay length (Excellent anti-twisting / non-rotating behavior)
4. Key Operational Advantages
- High Shock Resistance: Designed to absorb dynamic load impacts safely during heavy marine or construction lifts
- Rotational Stability: Multi-layer balancing counters spin tendencies, preventing load spinning at significant hoisting heights
- High Radial Stiffness: Resists structural crushing and deformation when spooled under high tension on multi-layer winch drums
5. Technical Data Examples (By Rope Diameter)
- 10mm Diameter: Mass 0.48 kg/m | Minimum Breaking Load (MBL) 93 kN
- 12mm Diameter: Mass 0.69 kg/m | Minimum Breaking Load (MBL) 134 kN
- 14mm Diameter: Mass 0.94 kg/m | Minimum Breaking Load (MBL) 182 kN
- 16mm Diameter: Mass 1.25 kg/m | Minimum Breaking Load (MBL) 238 kN
- 17mm Diameter: Mass 1.42 kg/m | Minimum Breaking Load (MBL) 269 kN
