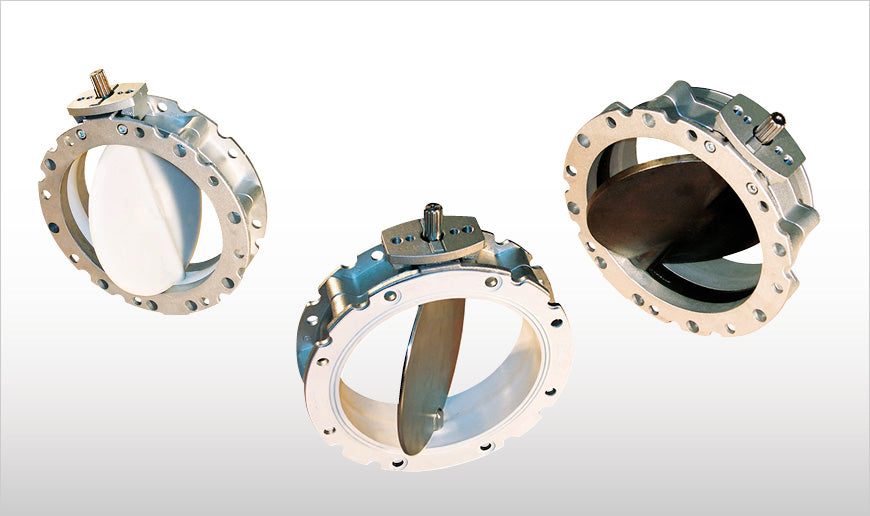

The WAM VFPX2200AID is a DN200 (200 mm) ATEX-certified food-grade butterfly valve designed for safe interception and discharge of powders, dust, and granular materials. As part of the VFPX Fit-Frame series, it combines explosion protection and hygienic design, making it ideal for industries where both contamination control and ATEX compliance are critical.
| Specification | Details |
|---|---|
| Model | VFPX2200AID |
| Type | Butterfly Valve (Fit-Frame, ATEX Version) |
| Diameter | DN200 (200 mm) |
| Certification | ATEX Zone 20 / Zone 22 |
| Food Compliance | EC 1935/2004 |
| Material | Aluminium alloy body |
| Disc Options | Stainless steel / polymer / cast iron |
| Seal Type | FDA-approved elastomer |
| Pressure Rating | Up to ~0.2 bar |
| Mounting | Flanged (PN / ANSI compatible) |
| Operation | Manual / Pneumatic |
| Application Media | Powders, dust, granules |
