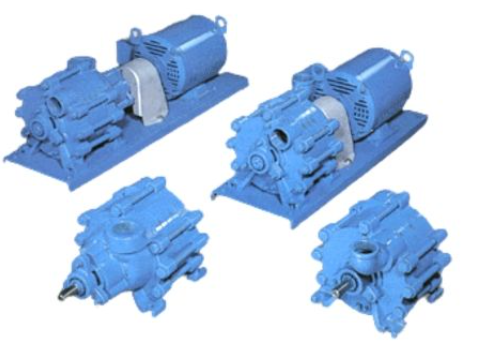

The MTH 241D-SS is a stainless steel regenerative turbine pump from the 240 Series, engineered for high-pressure, low-flow applications in industrial systems. Known for its compact design, low NPSH requirement, and stable performance, it is widely used in boiler feed, chemical processing, and precision fluid transfer systems.
| Specification | Details |
|---|---|
| Model | 241D-SS |
| Series | MTH 240 Series |
| Type | Regenerative Turbine Pump |
| Construction | Stainless Steel (AISI 316) |
| Flow Range | Low flow (typically within 1–60 GPM range depending on config) |
| Pressure Capability | Up to ~1000 PSI (series capability) |
| Stages | Multi-stage (config-dependent) |
| Suction Connection | ~1-1/2" NPT |
| Discharge Connection | ~1-1/4" NPT |
| Seal Type | Mechanical seal (Type 21, ceramic seat typical) |
| Mounting | Horizontal / flexible coupled |
| Motor | Optional / external drive |
