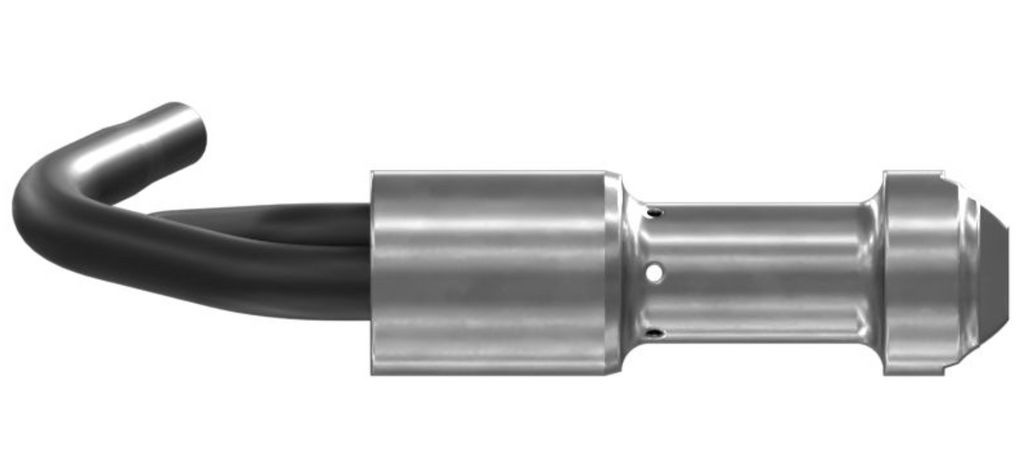

Technical Specifications: Caterpillar 116-3254 Piston Oil Jet TubeThe Caterpillar 116-3254 Piston Oil Jet Tube is a critical engine lubrication and thermal management component. It precisely directs targeted streams of high-pressure engine oil toward the undersides of the piston domes, transferring intense heat away from the pistons to prevent thermal deformation, optimize combustion stability, and reduce the risk of structural failure.
1. Kit Contents, Dimensions & Weight
- Kit Assembly Configuration: Contains 1 mounting block base and 2 calibrated cooling tubes.
- Overall Component Length: 203.20 mm (8.00 in).
- Overall Component Width: 127.00 mm (5.00 in).
- Overall Component Height: 21.59 mm (0.85 in).
-
Net Weight: 0.18 kg (0.40 lbs).
2. Material & Manufacturing Specs
-
Material Grade: High-strength, corrosion-resistant brazed steel tube matrix.
-
Design Profile: Dual-tube configuration precision-bent to strict geometric angles, ensuring permanent alignment with the internal piston cooling galleries.
-
Orifice Calibration: Micro-machined discharge nozzles optimized to maintain consistent fluid velocity and stream accuracy under varying engine oil pressures.
3. Equipment & Engine Compatibility
This piston cooling jet assembly is standard hardware integrated inside the crankcase of heavy-duty Caterpillar 3500 and G3500 engine blocks:
- Diesel Engine Series: CAT 3508, 3508B, 3512, 3512B, 3516, 3516B (including high-displacement HD and marine propulsion architectures).
- Gas Engine Series: G3508, G3512, G3516, G3520 (including B, C, E, and J series power generation platforms).
- Off-Highway Mining Equipment: Caterpillar D11N and D11R Track-Type Tractors, 5130 and 5230 Mining Excavators, 777 to 793 series Mining Trucks.
-
Power Modules & Systems: PM3508, PM3512, PM3516 power modules, and XQC1200 / XQC1600 generator setups.
4. Part Cross-References
- Alternative Part Numbers: 1163254, 116-3254.
-
Companion Components: Commonly locked into the engine block deck using the 1W-4188 Oil Cooling Jet Retainer.
