Main Dimensions
- Bore Diameter (d): 50 mm
- Outside Diameter (D): 130 mm
- Width (B): 31 mm
- Inner Ring Shoulder (~d1): 75.46 mm
- Outer Ring Shoulder (~D1): 104.25 mm
- Chamfer Dimension (r1,2 min.): 2.1 mm
Performance & Load Ratings
- Dynamic Load Rating (C): 87.1 kN
- Static Load Rating (C0): 52 kN
- Fatigue Load Limit (Pu): 2.2 kN
- Reference Speed: 12,000 r/min
- Limiting Speed: 7,500 r/min
Abutment Dimensions
- Shaft Abutment (da min.): 64 mm
- Housing Abutment (Da max.): 116 mm
- Fillet Radius (ra max.): 2 mm
Calculation Data
- Calculation Factor (kr): 0.035
- Calculation Factor (f0): 12.1
- Mass: 1.85 kg
Autres produits
0131966
Send Inquiry
04.0229.3653.CRE
Send Inquiry

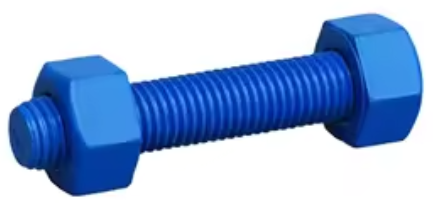

1-1/4 IN X 12-1/2 IN
Send Inquiry

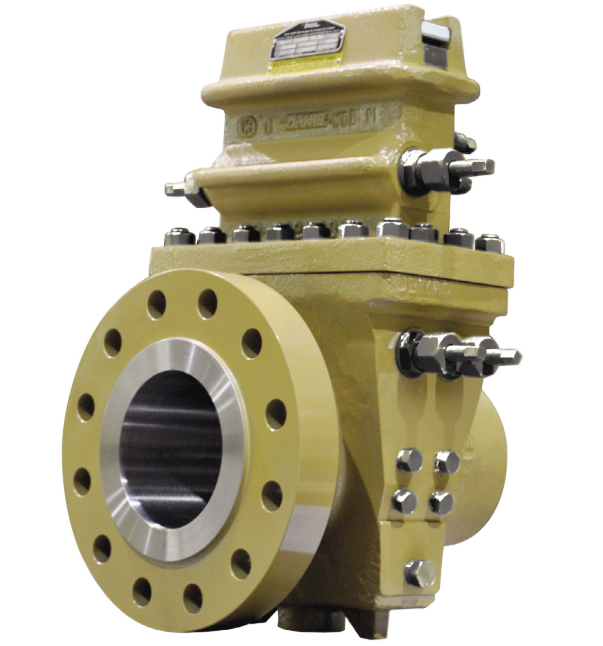

1-301-52-276
